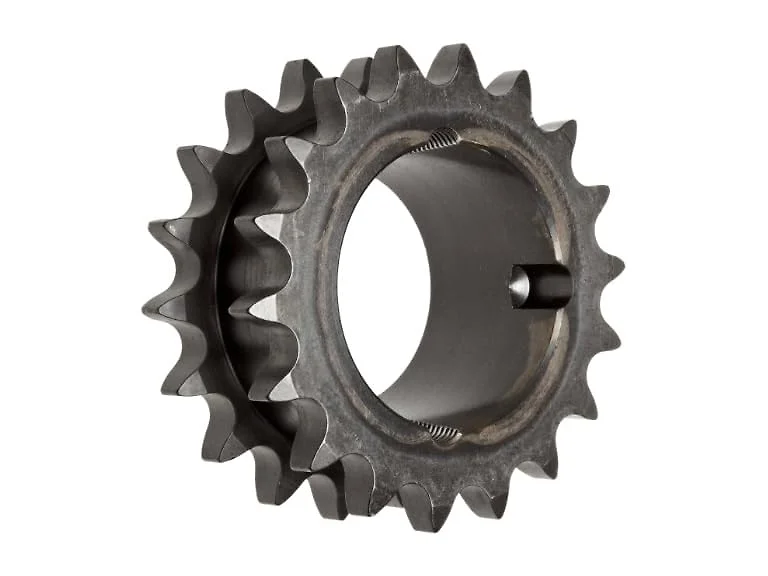

Martin Roller Chain Sprocket, Hardened
$200.80
Deal ends Oct 14, 2026
About This Deal
Double single strand sprocket with two sets of teeth around the circumference for use with two separate single strand chains to increase the load capacity Pitch of 3/4 inch for size 60 chains Sprocket bore has tapering grooves for inserting and locking into place a taper bushing that fits the diameter of the shaft Type A sprocket with a simple plate, bore, and no protruding hub on either side for applications where mounting space is limited Sprocket teeth hardened by electrical induction or flame to increase teeth durability against wear, lengthening the service life of the sprocketShipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item Warranty: 90 Day Woot Limited Warranty
Key Features
- ✓ Double single strand sprocket with two sets of teeth around the circumference for use with two separate single strand chains to increase the load capacity
- ✓ Pitch of 3/4 inch for size 60 chains
- ✓ Sprocket bore has tapering grooves for inserting and locking into place a taper bushing that fits the diameter of the shaft
- ✓ Type A sprocket with a simple plate, bore, and no protruding hub on either side for applications where mounting space is limited
- ✓ Sprocket teeth hardened by electrical induction or flame to increase teeth durability against wear, lengthening the service life of the sprocket
More Hardware Deals
Browse more deals in this category or set up an alert to get notified when similar products go on sale.
Technical Specifications
| Specifications | |
|---|---|
| Bore Diameter | 1.625 inches |
| Ean | 0697950029856 |
| Hub Diameter | 3.21875 inches |
| Item Diameter | 4.46 inches |
| Item Diameter Tolerance | +/- .010 inches |
| Length | 1.9375 inches |
| Material | Carbon Steel |
| Measurement System | Inch |
| Number of Items | 1 |
| Number of Teeth | 17 |
| Outside Diameter | 4.46 inches |
| Part Number | DS60ATB17H |
| Pitch | 0.75 inches |
| Shaft Mounting Type | 1615 |
| Specification Met | Iso 9001 |
| UNSPSC Code | 31171900 |
| UPC | 697950029856 |
| Width | 0.459 inches |
| Brand Name | MARTIN |
| Hub Style | Type A |
| Number of Teeth | 60 |
| Shaft Mounting Type | Bushing |
| Size | 60 |
| Special Features | Double Single Strand |
| Style | Taper Bushed |
| UNSPSC Code | 31171901 |
