ACOPOWER 120W Portable Solar Panel Kit

$189.99

SOLD OUT

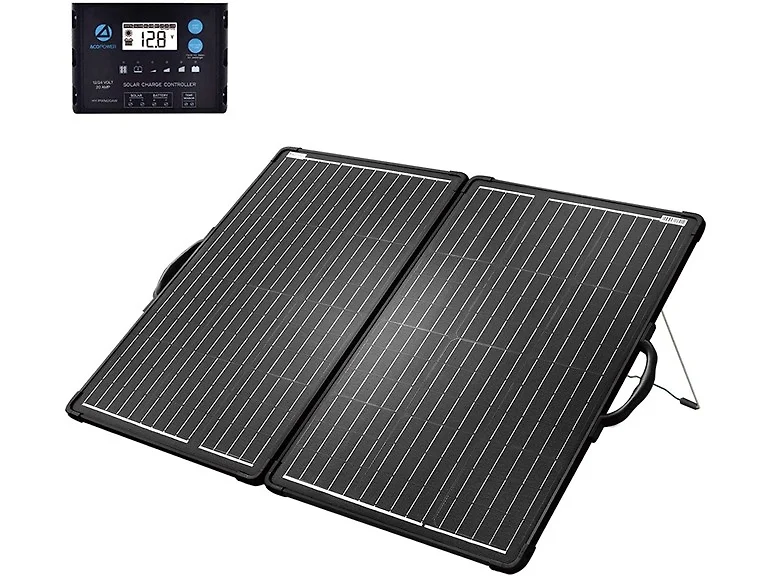

ACOPOWER 120W Portable Solar Panel Kit

The ACOPOWER 120W Monocrystalline Lightweight Portable Solar Panel Kit is lightweight, portable and comes with a pre-installed charge controller. The included charge controller protects battery against unsafe electrical conditions and must be used to charge 12V batteries. To charge solar generators with a built-in charge controller, simply use the MC4 cables provided and plug them into the cables that came with your power station to charge. A 12V battery and solar generator can be charged at the same time. Has a built in kickstand for easy set up and when stored, folds up to protect it from damage. 120W Portable Solar Panel: Light and portable: weighs 14lbs and has a folded size of 24 x 20 x 2 inches. Ideal output: 600 Watt hours per day (depends on sunlight availability) Monocrystalline panel for maximum charge output. Waterproof, compact and lightweight. Pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV's or campers. Compatible with 8 different types of batteries - Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium. 20A LCD Charge Controller: ​Waterproof design, suitable for indoor, outdoor, camping, boats, and RV use. 20 amps 12V/24V auto continuous charging capacity, enables use of up to 12V/360watts and 24V/720watts. Negative Ground Design Large LCD display - Shows volts, amps, amp hours and battery presets. User Manual   Review the FAQs for additional information.

Key Features

  • Light and portable: weighs 14lbs and has a folded size of 24 x 20 x 2 inches.
  • Ideal output: 600 Watt hours per day (depends on sunlight availability)
  • Monocrystalline panel for maximum charge output.
  • Waterproof, compact and lightweight.
  • Pre-installed stand allows for easy and quick set-up. MC-4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV's or campers.

Technical Specifications

ACOPOWER 120W FOLDABLE SOLAR PANEL
Module Type: 2×60W Maximum Power: 120W
Open-Circuit Voltage (Voc): 23.4V Maximum Operating Voltage (Vmp): 19.8V
Short-Circuit Current (Isc): 6.42A Maximum Operating Current (Imp): 6.06A
Folded size: 24.2x20.3x1.97 in / 615×515×50mm Unfolded size:
Weight: 13.9 lbs / 6.3kg
20A SOLAR CHARGE CONTROLLER
Nominal Voltage: 12V/24V DC Rated Charge Current: 20A
Max. PV Input Voltage: 50V Grounding: Common Negative
Battery Start Charging Voltage: 3V Temperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°F Storage Temperature: -40°F to 185°F
Terminals: Up to 10 AWG Enclosure: IP65
Dimensions: 5.59x 3.7x 1.06 inches Weight: 1.1 lbs



In the Box:

  • (1) 120W Portable Solar Panel
  • (1) 20A LCD Charge Controller
  • (1) User Manual
